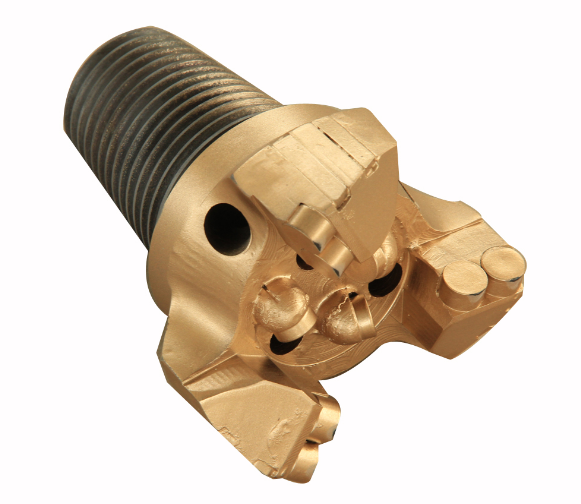

6 1/2 inches PDC step drag bit 3 Blades for hard welll drilling
Product Description
Far Eastern is leading supplier of PDC cutter in global market. We customized the drill bit body.

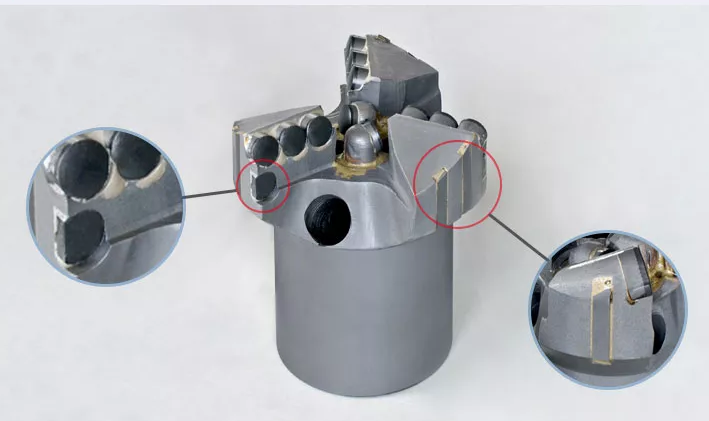

PRODUCT DETAILS DISPLAY
NO.1 Different level PDC cutter recommend as your stratum condition.
Steel body-Soft and middle hard stratum condition.
Matrix body-Middle hard and hard stratum condition.
Optimized body geometry and nozzle placement allows for highly effective balling mitigation,cutter cooling and cutting evacuation.
Product Specification
|
Drag Bit Size(Inch) |
6 1/2 Inches |
|
Drag Bit Connection |
3 1/2" reg pin |
|
Blades Quantity |
3 |
|
Drag Bit Formation |
Soft ,medium soft ,hard,medium hard,very hard formation.
|
Note:Special size is available by given sample or drawings.
|
Type |
Dimension |
Thread Connection |
|
|
inch |
mm |
||
|
3 blades Step Type |
3 1/2~17 1/2 |
89~445 |
N Rod,2 3/8 ~ 6 5/8 API REG / IF |
|
3 blades Chevron Type |
3 1/2~8 |
89~203 |
N Rod,2 3/8 ~ 4 1/2 API REG / IF
|
Based on advanced R&D,Far Eastern superhard composite materials division constantly develop new type products-According to customer's application,we change the design and raw materials which it can meet customer's requirements.
Far Eastern have 15 years services experience for different application ,such as oilfield well, natural gas well, geological exploration well, directional boring well, mining well, waer well ,HDD,construciotn and foundation. Our main product are inlcuding tricone bit, PDC bit, HDD hole opener,Foundation roller cutters .
We have got API and ISO certificate. We can design the drill bit as per different rock formations . Our engineer will give solution when you can tell us specification details, such as the rock bit's hardness,type of drilling rig,rotary speed,WOB and torque.Those details can help us to find the siutable drill bits after you tell us vertical well drilling or horizontal drilling,oil well drilling no No-Dig drilling or foundtaion piling.
We are expecting to cooperate with you more soon!
