Professional DIN 3352 F4 Ductile Iron Body Metal Seated Gate Valve

Metal seat gate valves rated to 16 Bar

Non-rising stem with O-ring seals

1.Conforms to BS5150 & BS5163.

2.Flanges drilled to EN1092-2.

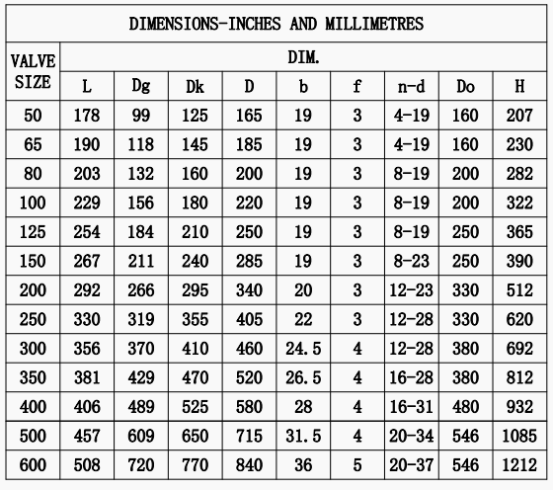

3.Face to face dimensions conform to BS5163.

4.Nominal pressure:1.6Mpa.

5.Seat Test pressure:1.76Mpa.

6.She11 Test pressure:2.4Mpa.

7.Suitable Temperature≤232℃.

8.Suitable media:water,oil,gas.

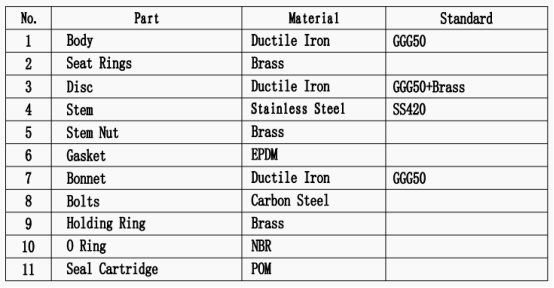

Body: BS EN1563:1997 EN-GJS-500-7

Stem: BS EN10088-1 1.4021 (SS420)

Seats/nut: BS EN1982 CC491K or C331G(AB1)

Coating∶RAL5005 epoxy >300μ- WRAS listed

Operator: Handwheel OR Worm gear


Product Detail

Related Video

Catalog

abide by the contract”, conforms to the market requirement, joins during the market competition by its superior quality also as provides extra comprehensive and exceptional service for consumers to let them turn into significant winner. The pursue of the business, is definitely the clients’ gratification for Professional DIN 3352 F4 Ductile Iron Body Metal Seated Gate Valve, Welcome buddies from all over the earth come to visit, tutorial and negotiate.
abide by the contract”, conforms to the market requirement, joins during the market competition by its superior quality also as provides extra comprehensive and exceptional service for consumers to let them turn into significant winner. The pursue of the business, is definitely the clients’ gratification for , In order to make more people know our items and to enlarge our market, we’ve got devoted a lot of attention to technical innovations and improvement, as well as replacement of equipment. Last but not the least, we also pay more attention to training our managerial personnel, technicians and workers in planned way.
abide by the contract”, conforms to the market requirement, joins during the market competition by its superior quality also as provides extra comprehensive and exceptional service for consumers to let them turn into significant winner. The pursue of the business, is definitely the clients’ gratification for Chinese Professional DIN 3352 F4 Water Treatment Ductile Iron Body Metal Seated Gate Valve, Welcome buddies from all over the earth come to visit, tutorial and negotiate.
Chinese Professional Valve and Gate Valve, In order to make more people know our items and to enlarge our market, we’ve got devoted a lot of attention to technical innovations and improvement, as well as replacement of equipment. Last but not the least, we also pay more attention to training our managerial personnel, technicians and workers in planned way.
