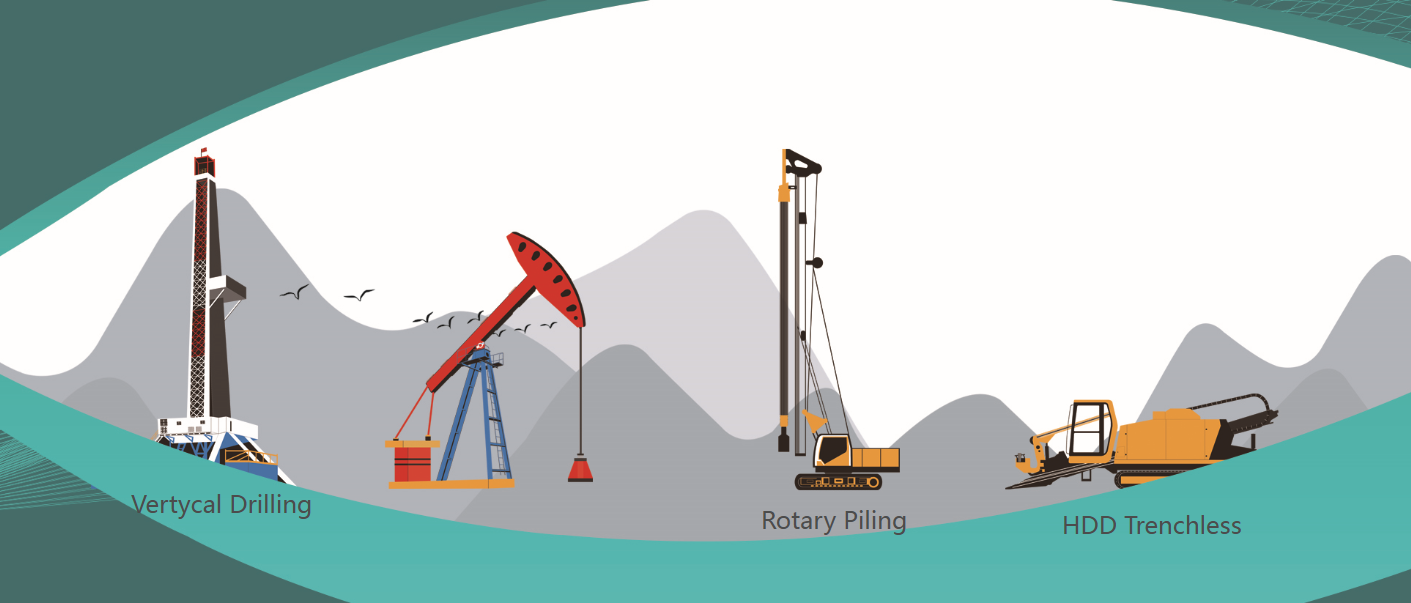

the difference between vertical drilling,rotary piling and HDD trenchless

Definition: A traditional drilling method that creates holes perpendicular to the Earth’s surface to access subsurface resources or construct vertical structures.​

Working Principle: A rotating drill bit (e.g., tricone, PDC bit) is driven downward by mechanical or hydraulic force. Drilling fluid (mud) is circulated to cool the bit, remove cuttings, and stabilize the borehole walls.​

Key Applications:​

• Extracting oil, natural gas, or minerals (e.g., coal, metals).​

• Drilling water wells, geothermal wells, or monitoring wells for environmental surveys.​

Advantages: High depth capacity (up to thousands of meters), precise vertical alignment, and suitability for hard rock formations.​

Limitations: Requires significant surface space, disrupts topsoil, and cannot navigate horizontal obstacles (e.g., rivers, roads).​

2. Rotary Piling​

Definition: A specialized foundation construction technique that drills vertical or slightly inclined boreholes to install concrete, steel, or composite piles (load-bearing structures for buildings/bridges).​

Working Principle: A rotary drill rig uses a hollow drill bucket or auger to excavate soil/rock. After forming the borehole, reinforcement cages are inserted, and concrete is poured (often under pressure) to create a pile.​

Key Applications:​

• Building foundations for high-rises, bridges, ports, or industrial facilities (to distribute structural loads to stable subsurface layers).​

• Stabilizing slopes or repairing existing foundations.​

Advantages: Fast pile formation, adapts to diverse soils (clay, sand, soft rock), and minimizes vibration compared to hammer piling.​

Limitations: Requires flat surface preparation, may cause borehole collapse in loose soils (needing casing), and is limited to shallow-to-moderate depths (usually <100 meters).​

3. HDD Trenchless (Horizontal Directional Drilling)​

Definition: An innovative “no-dig” technique that drills horizontal or directional boreholes beneath the ground surface to install underground utilities (pipes, cables) without excavating trenches.​

Working Principle:​

1. A small “pilot hole” is drilled along a pre-designed horizontal path using a steerable drill head (guided by GPS or gyroscopes).​

2. The pilot hole is enlarged (reamed) to match the utility diameter.​

3. The utility pipe/cable is pulled back through the enlarged borehole.​

Key Applications:​

• Installing water/sewage pipes, gas lines, or fiber-optic cables under roads, railways, rivers, airports, or environmentally sensitive areas (e.g., wetlands).​

Advantages: Minimal surface disruption (no trench digging), preserves infrastructure/traffic flow, and reduces environmental impact.​

Limitations: Lower depth capacity (typically <100 meters), limited to soft-to-medium soils (hard rock increases cost), and requires precise navigation (risk of drill path deviation).​

Core Differences Summary Table
