PDC cutters are the key cutting elements of a PDC drill bit. Their installation quality has a direct influence on drilling performance, cutter retention and overall bit life.
So, how are PDC cutters securely installed on a PDC drill bit?
The answer is precision brazing.
1. Preparing the PDC Cutters and Bit Body
Before brazing, the PDC cutters and cutter pockets must be thoroughly cleaned.
Oil, dust, oxide layers and other contaminants can reduce the wettability of the brazing alloy and weaken the connection. Therefore, the cutter surfaces and pockets are normally cleaned and prepared before assembly.
2. Positioning the PDC Cutters
Each PDC cutter is installed into a precisely machined cutter pocket on the blade of the drill bit.
The cutter must be positioned at the correct angle and orientation according to the drill bit design. Accurate positioning helps ensure that the cutting structure works efficiently and that the cutters share the drilling load properly.
3. Applying Brazing Alloy and Flux
A silver-based brazing alloy is commonly used to bond the PDC cutter to the drill bit body.
The brazing alloy is placed between the tungsten carbide substrate of the PDC cutter and the cutter pocket. Flux may also be applied to improve the flow and wetting of the brazing alloy.
4. Controlled Heating
The drill bit is then heated using a controlled brazing process, such as high-frequency induction heating or flame brazing.
The purpose is to melt the brazing alloy and allow it to flow evenly around the cutter substrate and into the joint.
Temperature control is extremely important.
Excessive heat or prolonged heating can cause thermal damage to the PDC cutter. PDC manufacturing references commonly use silver-based brazing alloys and carefully controlled heating temperatures to minimize thermal degradation of the diamond layer.
During flame brazing, the heat should be applied primarily to the bit body and surrounding area rather than directly concentrating the flame on the diamond table.
5. Cooling and Stress Relief
After brazing, the PDC drill bit should be cooled in a controlled manner.
Rapid cooling can generate thermal stress in the brazed joint and PDC cutter. Controlled cooling helps reduce the risk of cracking or other thermal damage.
6. Final Inspection
After cooling, each PDC cutter is inspected to verify:
• Cutter position and orientation
• Brazing quality
• Cutter retention
• Brazing joint integrity
• Cutter damage or cracks
• Bit body and blade condition

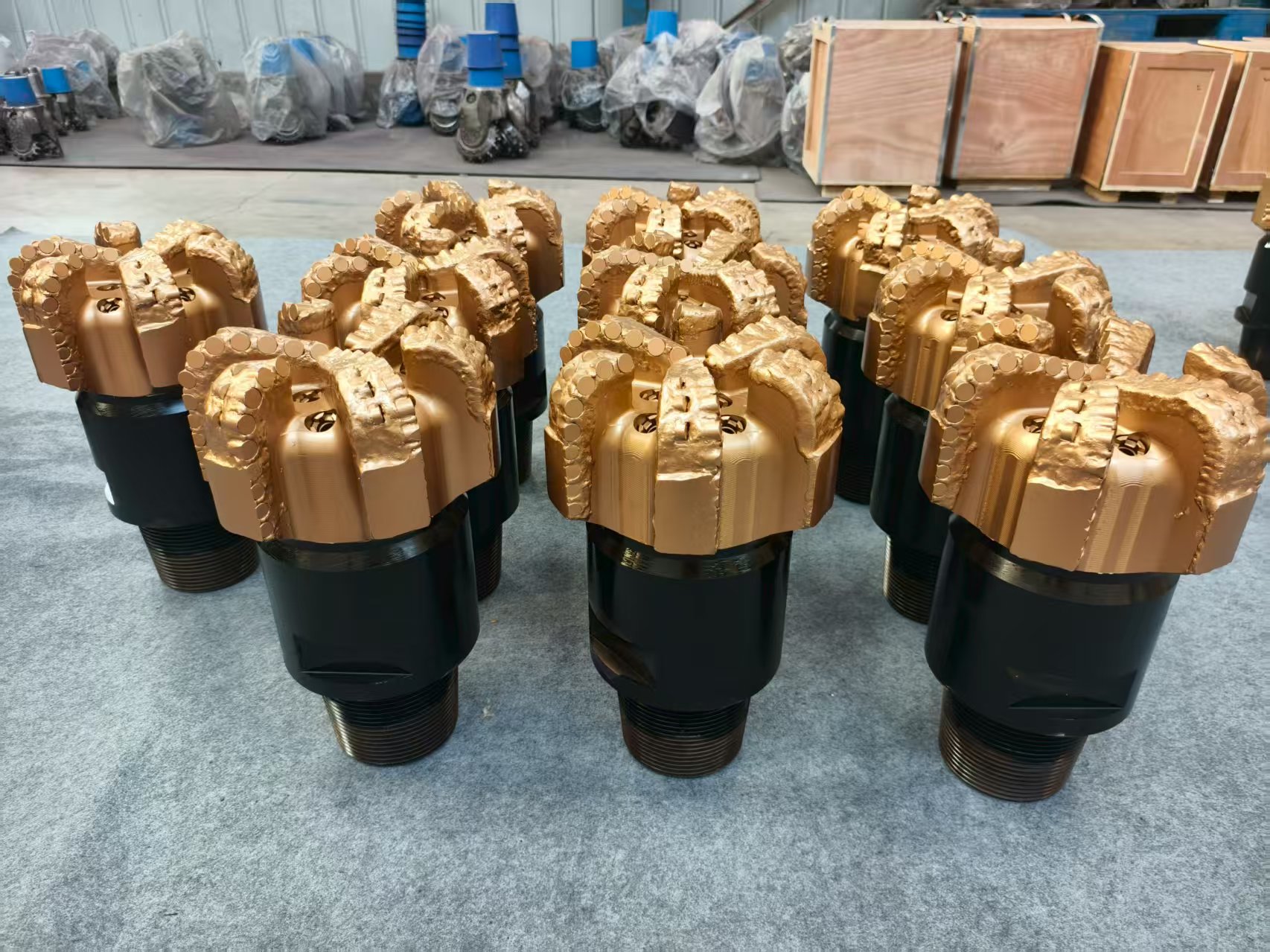

Only after passing the final quality inspection is the PDC drill bit ready for shipment.
Why Is PDC Cutter Brazing So Important?
The PDC cutters are subjected to high impact, vibration, friction and thermal loads during drilling.
A high-quality brazed joint helps prevent cutter loss and maintains the designed cutting structure of the PDC bit.
At FAR EASTERN, we focus on precision manufacturing and reliable PDC cutter installation to provide PDC drill bits for different drilling applications, including oil and gas drilling, water well drilling, mining, geothermal drilling, geological exploration and construction.
