Master the step-by-step operation, safety protocols, and best practices for hole opener (reamer) use on Ditch Witch horizontal directional drilling rigs to boost project efficiency and reduce downtime.
1. Introduction

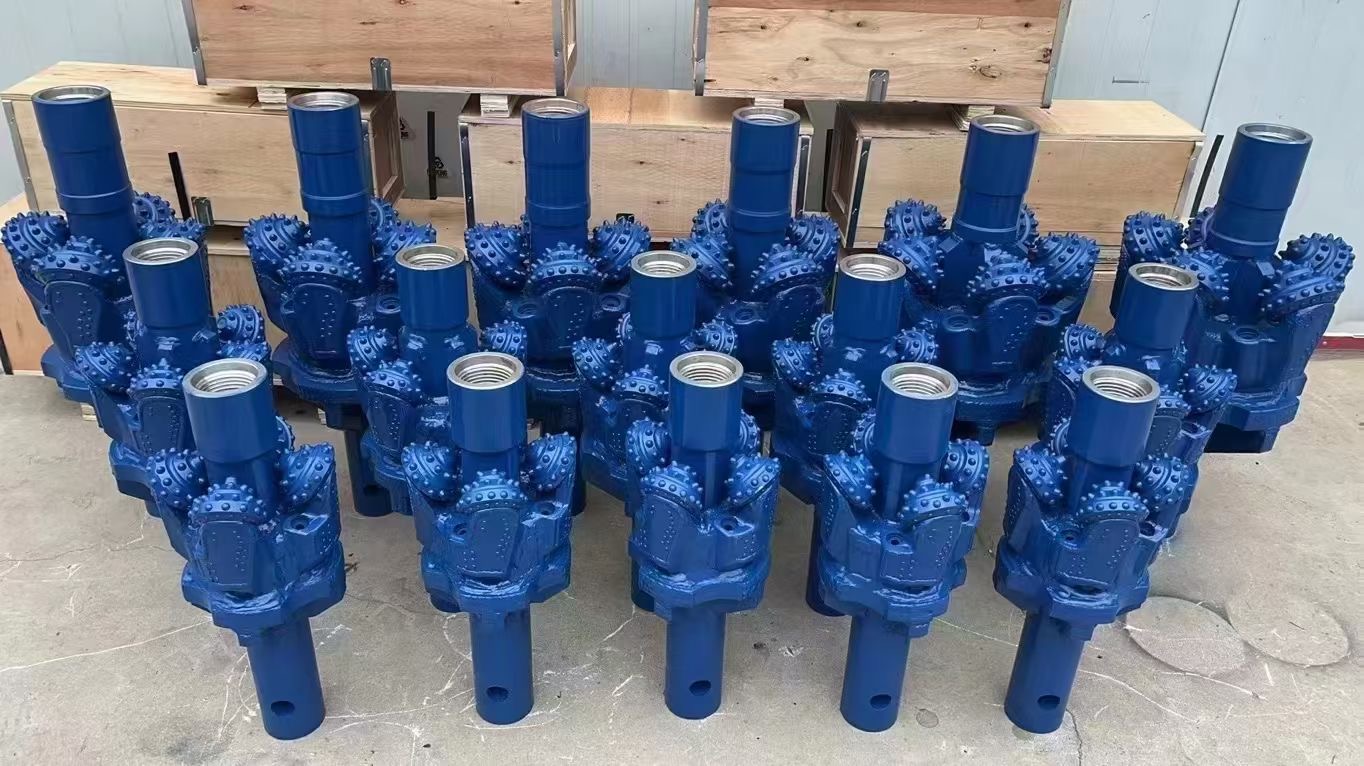

Horizontal directional drilling (HDD) is the gold standard for trenchless underground utility installation, and the hole opener (reamer) is the critical tool for enlarging pilot holes to accommodate product pipes. For Ditch Witch HDD rig operators, mastering proper hole opener operation is essential to ensure project success, protect equipment, and maintain job site safety. This comprehensive guide breaks down the entire workflow—from pre-operation preparation to post-operation maintenance—tailored specifically for Ditch Witch trenchless rigs.
2. Pre-Operation Preparation: The Foundation of Successful Reaming
Before engaging the hole opener, thorough preparation is non-negotiable to avoid costly delays and safety hazards.
• Pilot Hole Validation: Confirm the pilot hole is straight, aligned with the pullback path, and 30%–40% smaller in diameter than the first reaming pass. Fully evacuate all cuttings to prevent blockages and uneven reaming.
• Tool & Rig Inspection: Select a hole opener matched to the formation (rock/soft soil) and target diameter. Inspect cutters, stabilizers, welds, and bearings for damage. Verify Ditch Witch rig torque, thrust, and mud circulation systems are fully functional; set mud flow rates to effectively cool the opener and remove cuttings.
• Drill String Assembly: Securely mount the hole opener to the drill string, torquing all joints to Ditch Witch’s manufacturer specifications. Ensure the assembly is balanced to minimize vibration.
• Safety Setup: Clear the work area, ensure all personnel wear PPE (hard hat, steel-toe boots, gloves), and maintain a 10-foot (3m) safety zone around the rotating drill string.
3. Step-by-Step Hole Opener Operation on Ditch Witch Rigs
Follow this structured process for controlled, efficient reaming:
1. Set Rig Parameters: Activate forward rotation only (reverse rotation risks loosening cutters and damaging welds). Start with low torque and thrust, gradually increasing as the opener engages the formation.
2. Initiate Reaming: Advance the drill string slowly while maintaining steady mud flow. Monitor rig torque, vibration, and mud returns closely—discolored or reduced mud flow signals a blockage.
3. Gradual Hole Expansion: Use a staged reaming sequence (e.g., 4” → 8” → 12” → final size) to avoid excessive stress on the rig and tool. Clean the hole thoroughly between passes to ensure stability.
4. Monitor & Adjust: If torque spikes, vibration increases, or the drill string bows, stop immediately and back up slightly to resolve issues. Never force the reaming process.
5. Final Pass & Pullback Prep: Once the target diameter is reached, confirm hole stability. Remove the hole opener and attach the product pipe pullback assembly.
4. Critical Safety & Best Practices
• No Reverse Rotation: Limit reverse rotation to freeing stuck tools only; prolonged use causes premature tool failure.
• Mud Management: Maintain consistent mud flow to cool the opener, lubricate the drill string, and evacuate cuttings—insufficient mud leads to overheating and stuck tools.
• Cutter Inspection: Check cutter wear, bearing condition, and joint tightness between reaming passes to prevent tool failure downhole.
• Follow Ditch Witch Manuals: Adhere to model-specific guidelines for torque, thrust, and operational limits (e.g., JT100, AT120 series).
5. Post-Operation Maintenance
• Shutdown: Gradually reduce rig speed, stop rotation, and shut down the engine safely.
• Tool Care: Clean the hole opener, remove debris, inspect for wear, and perform maintenance (grease bearings, replace damaged cutters) to extend tool life.
• Record Keeping: Document reaming parameters, formation conditions, and tool performance for future project optimization.
6. Conclusion
Proper hole opener operation is a cornerstone of successful Ditch Witch HDD projects. By following this step-by-step guide, operators can ensure safe, efficient reaming, minimize equipment downtime, and deliver high-quality trenchless installations. Always prioritize safety, adhere to manufacturer guidelines, and adapt practices to site-specific conditions for optimal results.
